WENERGY · CONTAINERIZED BESS

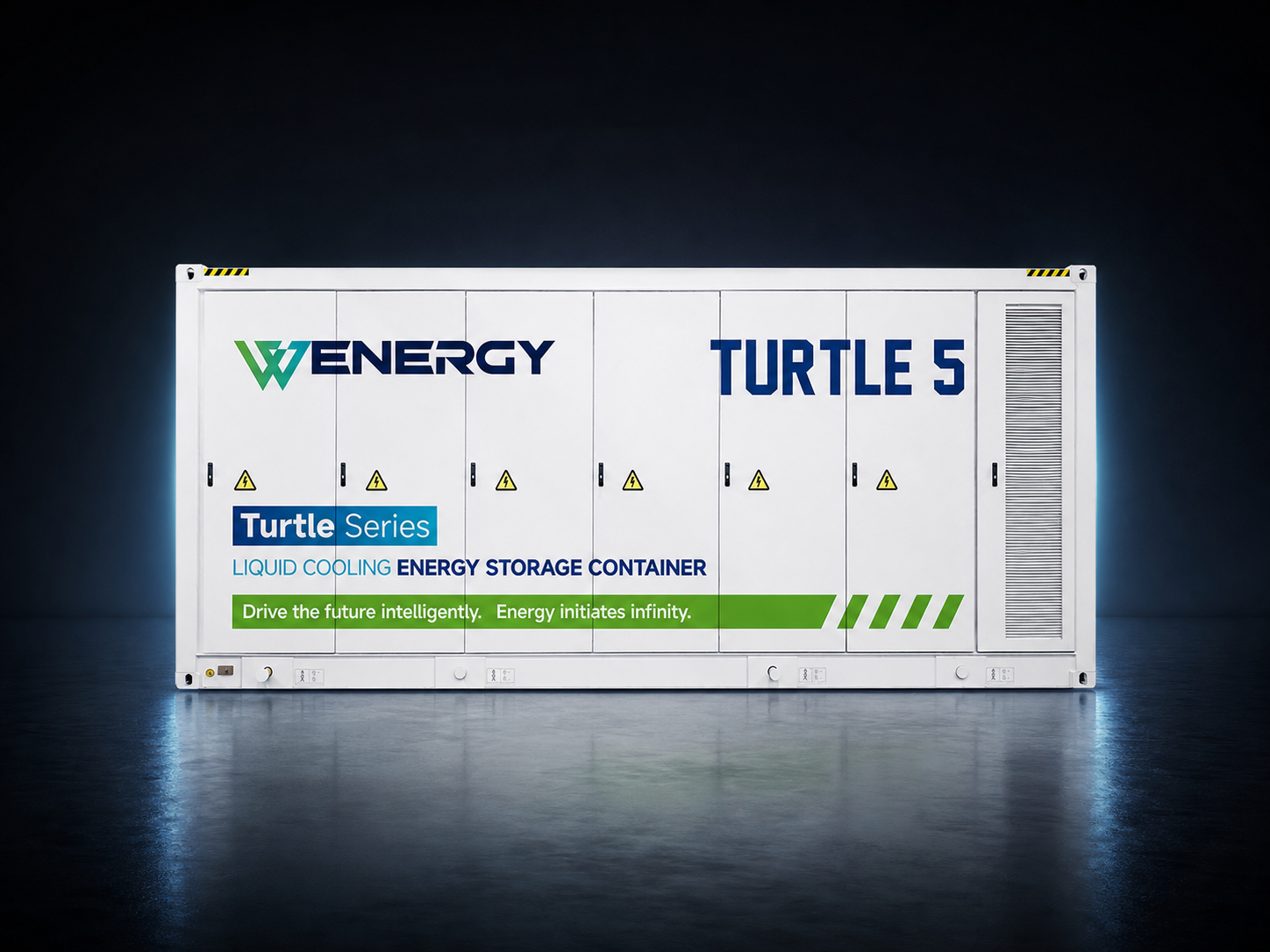

Turtle 5MWh
A 5.016 MWh liquid-cooled container for high-density storage projects.
LFPLiquid-cooled platformProject configuration
VERIFIED PUBLIC DATA
Key technical parameters
A high-capacity 20-foot platform for large renewable, grid-support and commercial energy projects where land use and modular deployment matter.
These values support early product comparison. Final electrical design, scope and compliance must follow the confirmed project datasheet.
Rated energy5.016 MWh
Rated power≤2.5 MW
Cell314 Ah LFP
Rated DC voltage1331.2 V
DC range1164.8–1497.6 V
Enclosure ratingIP55*
Dimensions6058 × 2438 × 2896 mm
Weight≤43 t
Typical applications
- Renewable power plants
- Grid capacity and balancing
- Large industrial energy projects
- Modular utility storage
System highlights
- Liquid-cooled cell environment
- CAN, IEC 61850 and IEC 104 connectivity
- Modbus TCP / RTU support
- High energy density in a 20-foot footprint
Standards note: *Compartment and component protection levels vary; confirm the final project specification.
PROJECT DISCUSSION
Move from a product shortlist to a workable configuration.
Share your country, application, target capacity or fleet size, delivery timing and any required standards. Chi will route the inquiry to the right product line.
