WENERGY · C&I ENERGY STORAGE

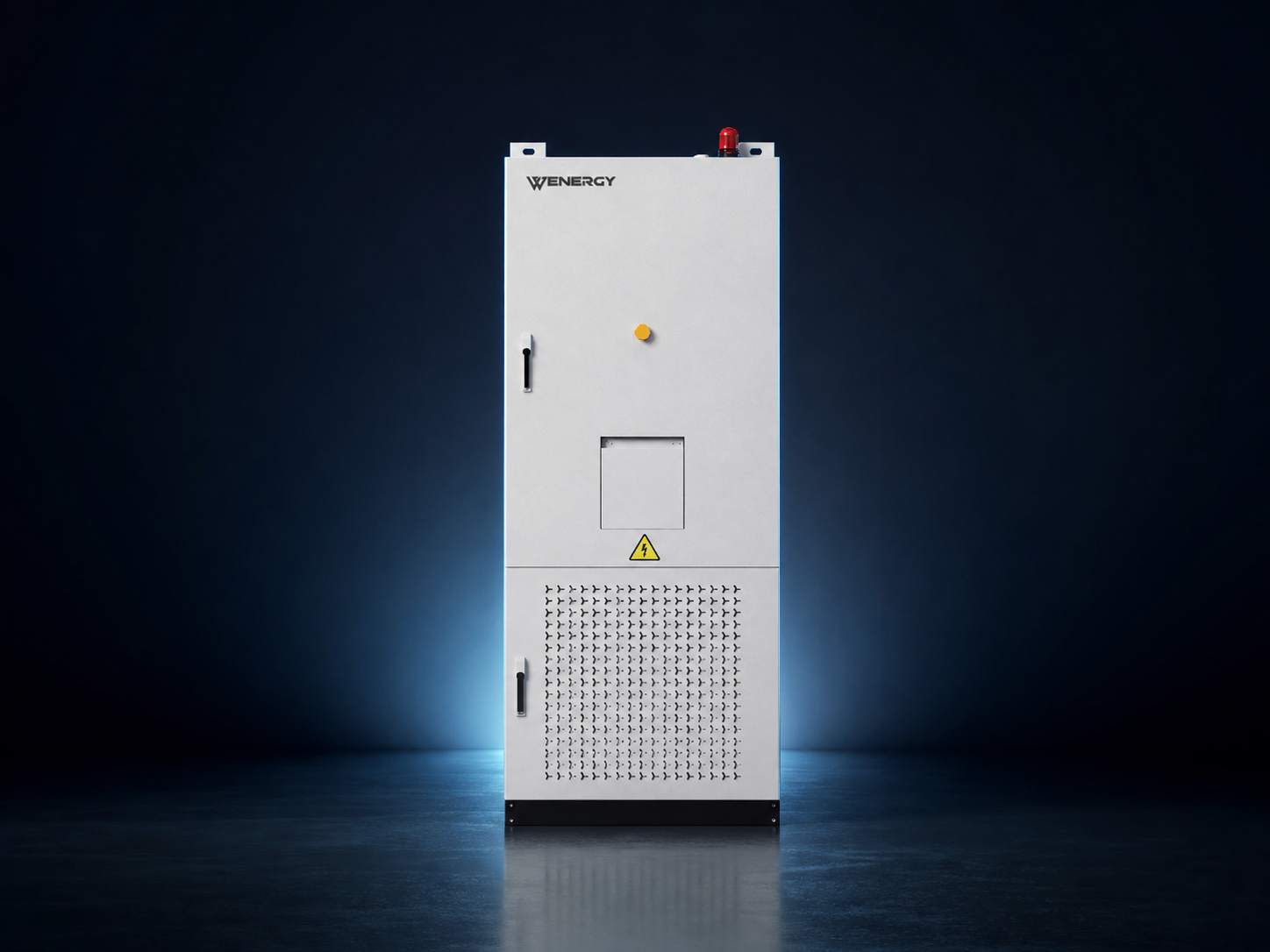

Stars CL215
A compact 100 kW / 215 kWh liquid-cooled cabinet for behind-the-meter energy projects.
LFPLiquid-cooled platformProject configuration
VERIFIED PUBLIC DATA
Key technical parameters
Designed for commercial and industrial sites that need a space-efficient, integrated battery energy storage platform for peak management, renewable integration and backup planning.
These values support early product comparison. Final electrical design, scope and compliance must follow the confirmed project datasheet.
Rated energy215 kWh
Rated power100 kW
Rated DC voltage768 V
DC range672–864 V
AC output380 / 400 V, 3P4W
CoolingLiquid cooling
Cell formatLFP, 280 Ah
Cycle reference6,000 cycles
Typical applications
- Peak shaving and demand management
- Solar self-consumption
- Backup power planning
- EV charging support
System highlights
- Integrated cabinet architecture
- Liquid-cooled battery temperature control
- Three-phase AC connection
- Project-level EMS integration
Standards note: Cell-level references include UN 38.3, UL 9540A, UL 1973 and IEC 62619; system compliance is configuration-dependent.
PROJECT DISCUSSION
Move from a product shortlist to a workable configuration.
Share your country, application, target capacity or fleet size, delivery timing and any required standards. Chi will route the inquiry to the right product line.
